LR-8700Rolling Roof Pergola System
Retractable aluminum louvers combine shading and ventilation in a single system, providing controlled year-round comfort for terraces and outdoor spaces.
- Remote-controlled, adjustable motorized operation
- Single-module applications up to 24 m²

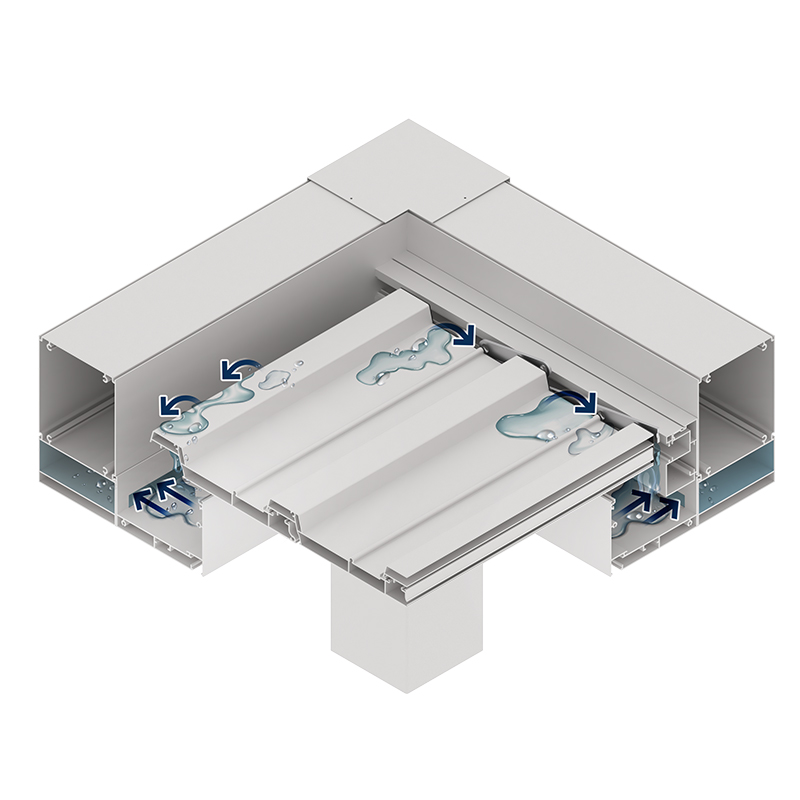

- Integrated gutter and post drainage system
Key Features
Flexible Support Options
Freestanding and wall-mounted alternatives adapt to different spatial requirements and layout plans.
Modular Expansion
Four-post freestanding units can be connected with dedicated fasteners to provide uninterrupted shading across large areas.
Controlled Ventilation
The adjustable louver opening ratio creates optimal airflow and a refreshing atmosphere in enclosed spaces.
Adjustable Comfort
The motorized opening and closing mechanism can be easily controlled according to changing weather conditions and user preferences.
Technical Details

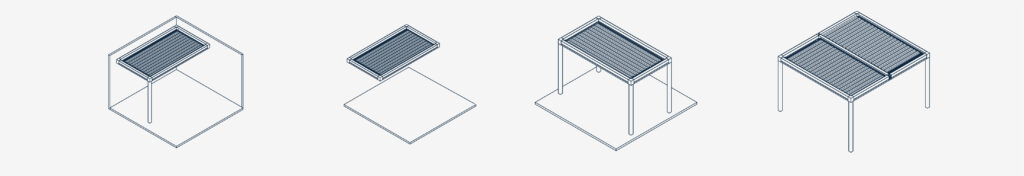

INSTALLATION CONFIGURATIONS
TECHNICAL SPECIFICATIONS
- Beam & Gutter283 / 220 mm
- Louver252 / 44 mm
- Post Profile133 / 133 mm
- Maximum Area24 m²
- Freestanding Unit4 Posts
- Wall-Mounted Installation1, 2 or 3 Posts
The aluminum pergola adapts to different architectural scenarios with wall-mounted, freestanding and modularly expandable support alternatives.
Snow load is not included in these calculations. Available options may vary depending on profile and configuration preferences. Please contact your Linea Rossa representative for project-specific information.
