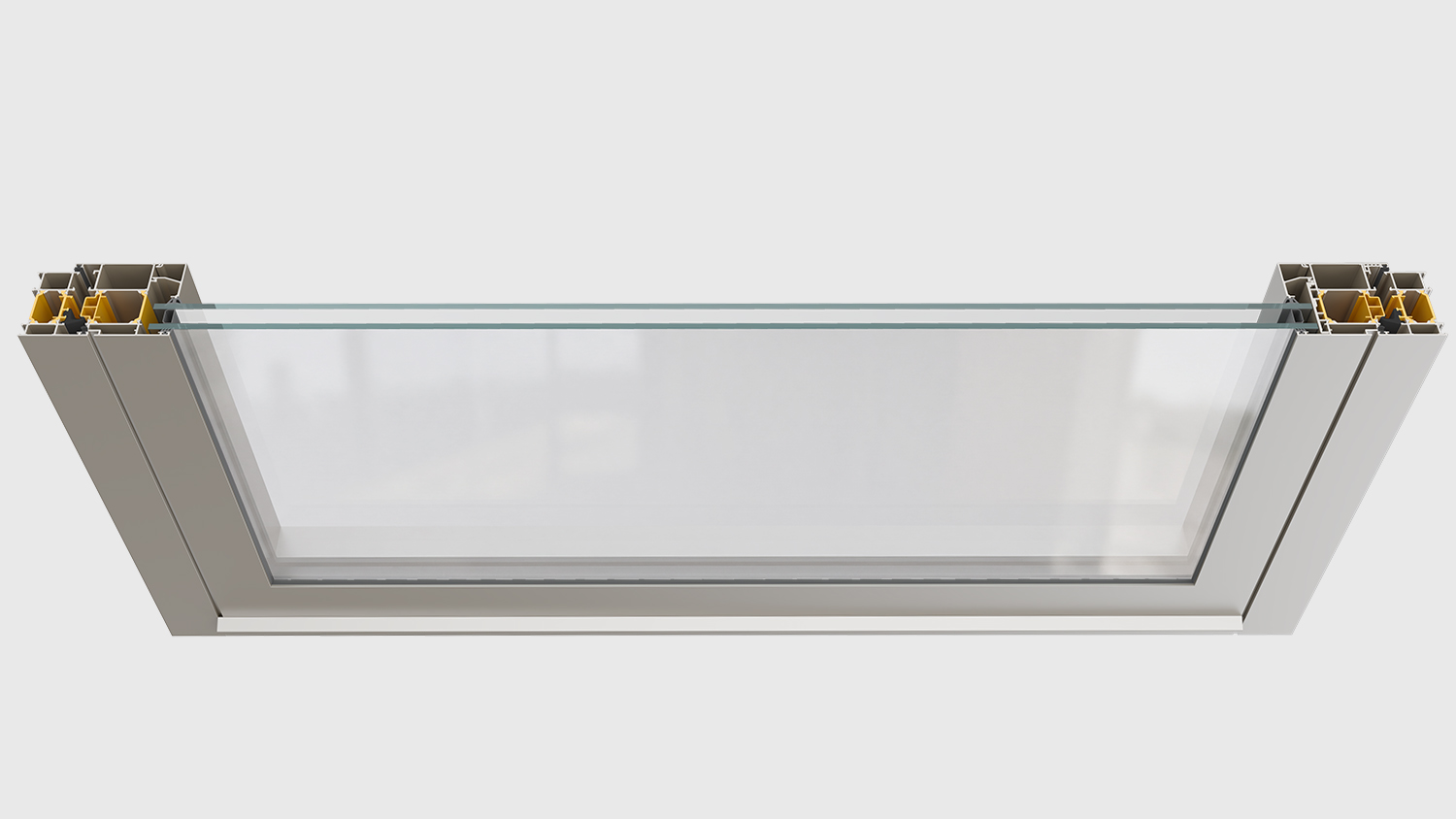

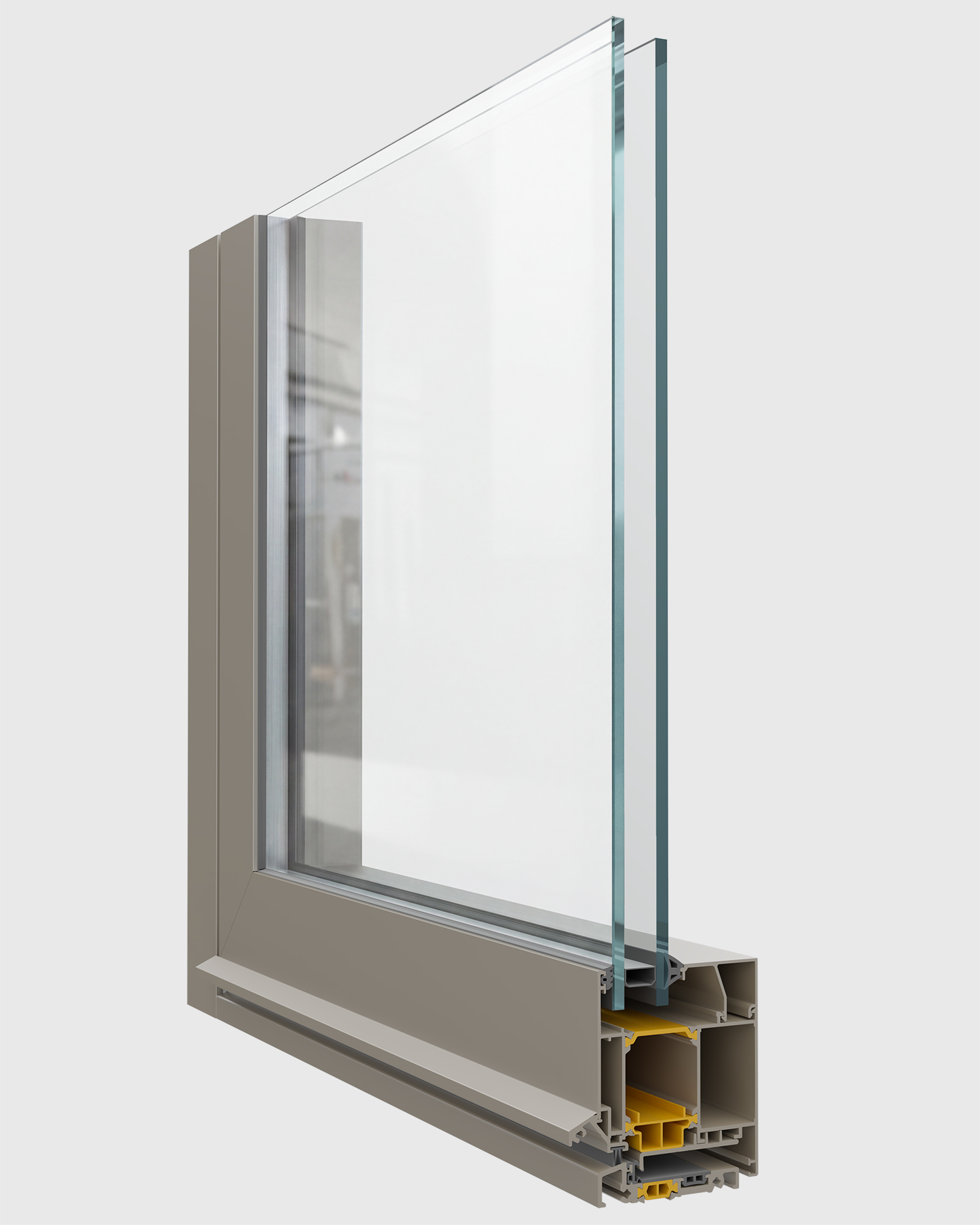

LR-5200Insulated Opening System
With its compatible and integrated structure with LR-5200D, varied profile combinations, enhanced thermal insulation and inward-outward opening flexibility, LR-5200 delivers high performance for window and door projects.
- Sash load capacity up to 180 kg
- 20–53 mm glazing and a 36 mm thermal break
- Inward and outward opening, low-threshold and insect screen options
Key Features
Enhanced Thermal Insulation
The 36 mm thermal break and varied profile combinations support energy efficiency and indoor comfort.
Inward and Outward Opening Flexibility
Compatibility with both inward- and outward-opening applications provides functional flexibility across different architectural layouts.
Durable Seals and Hinges
Durable sealing gaskets and hinge mechanisms provide long-lasting performance with improved weather tightness.
Ease of Use and Functionality
An adjustable lock strike plate, low-threshold and insect-screen options, easy integration with LR-5200D, and tilt-and-turn hardware for sash weights up to 180 kg increase system flexibility.
Technical Details
OPENING TYPES
TECHNICAL SPECIFICATIONS
- Sash Width81 mm
- Minimum Sash Height90 mm
- Frame Width71 mm
- Glass Thickness20–53 mm
- Maximum Sash Load Capacity180 kg
- Thermal Break36 mm
LR-5200 and LR-5200D systems feature a compatible and integrated system design.
Enhanced thermal insulation through varied profile combinations, functional flexibility for inward- and outward-opening applications, and durable sealing gaskets and hinge mechanisms ensure long-lasting performance.
Let’s determine the right insulated opening solution for your window and door project.
Get support from our expert team on sash dimensions, glazing selection, opening direction, low-threshold, insect-screen options and LR-5200D integration.
