LR-3100Insulated Sliding System
A slim profile design combines strong thermal, water and air insulation with smooth, secure and effortless operation across expansive glazed surfaces.

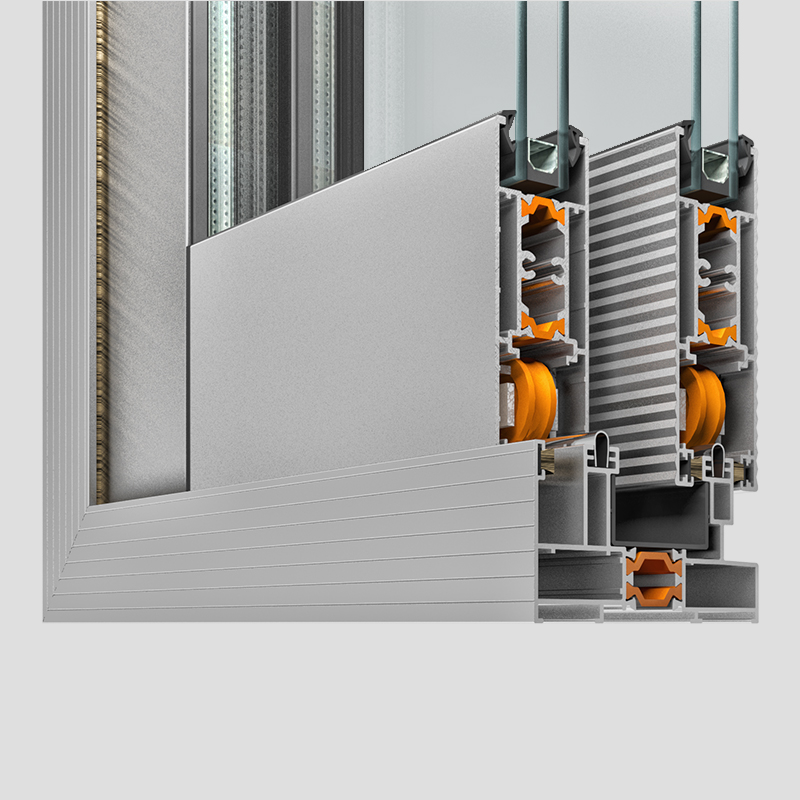

- Sash carrying capacity up to 120 kg
- 30–32 mm glazing and a 21 mm thermal break
- Slim center meeting stile, multi-point locking and fly screen option
Key Features
Minimal Architectural Solution

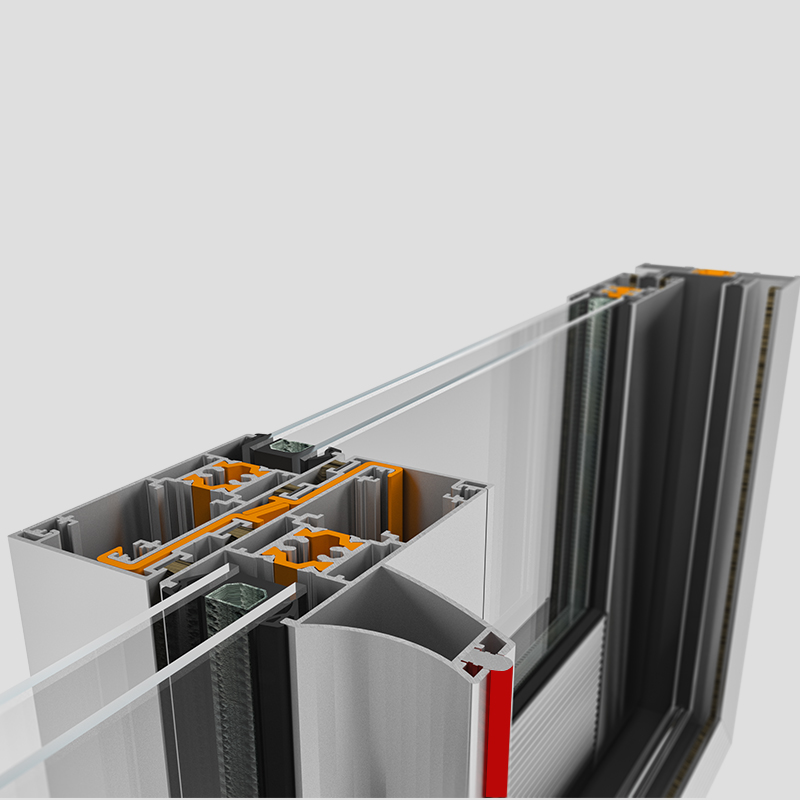

A 50% slimmer center meeting stile provides larger glazed surfaces and a clean appearance for modern spaces.
High-Security Locking
A specially designed, high-strength multi-point locking system improves security and operational control.
Thermal Efficiency

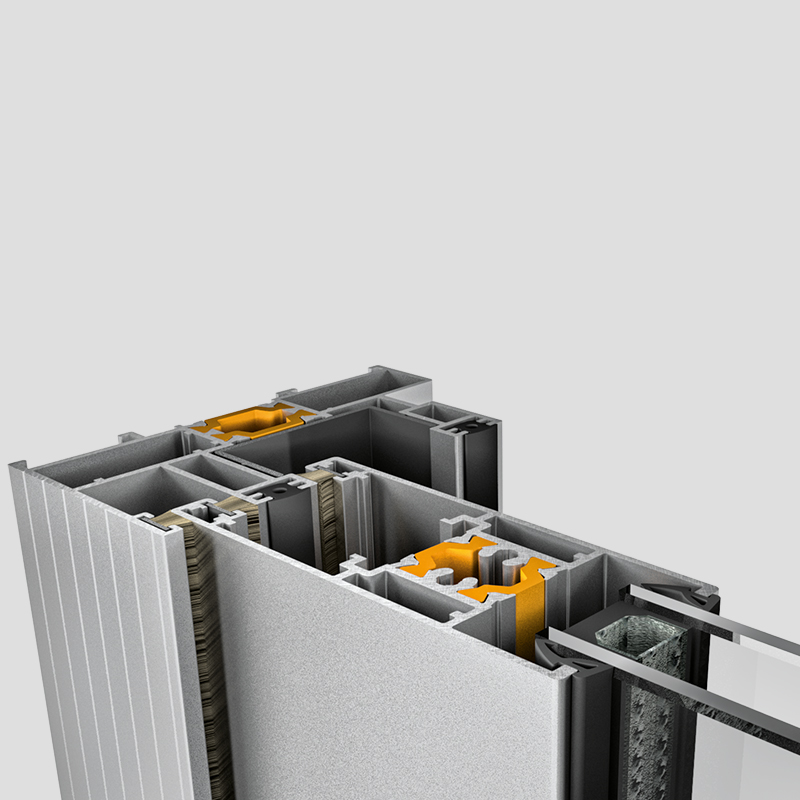

The 21 mm thermal break and polyamide-insulated center detail support energy savings and indoor comfort.
Easy Production and Installation
Its streamlined design reduces labor time and installation complexity from production through final use.
Technical Details
SLIDING TYPES
TECHNICAL SPECIFICATIONS
- Sash Width32 mm
- Sash Height75 mm
- Frame Height44 mm
- Glass Thickness30–32 mm
- Maximum Sash Carrying Capacity120 kg
- Thermal Break21 mm
- Middle Sash Width34–78.5 mm
The 34 mm middle sash profile allows more natural light to enter at 90° sash joints.

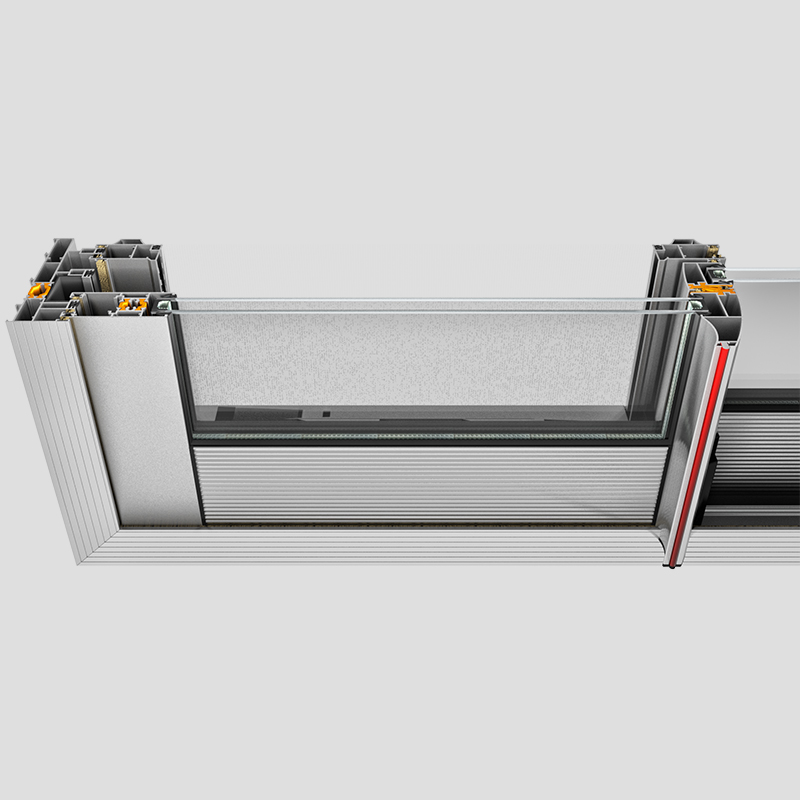

The dedicated fly screen track and sash are compatible with 90° and 45° sash combinations. Available options may vary depending on profile and configuration preferences.
Let’s determine the right insulated sliding solution for your project.
Get support from our expert team on sash dimensions, glazing selection, corner joints and fly screen options.
Technical Documentation Portal
Access system CAD files, detailed technical documents and technical PDFs in one place through your approved account.
Portal access becomes available after your membership request is approved by Linea Rossa.
