LR-2200Uninsulated Sliding System
Effortless sliding meets timeless design in a reliable solution for modern interiors, combining durable profiles, high-performance bearings and refined details.
- Sash carrying capacity up to 120 kg
- 20–26 mm glazing and 1.3–1.8 mm profile wall thickness
- Monorail, 3-track frame, multi-point locking and fly screen options
Key Features

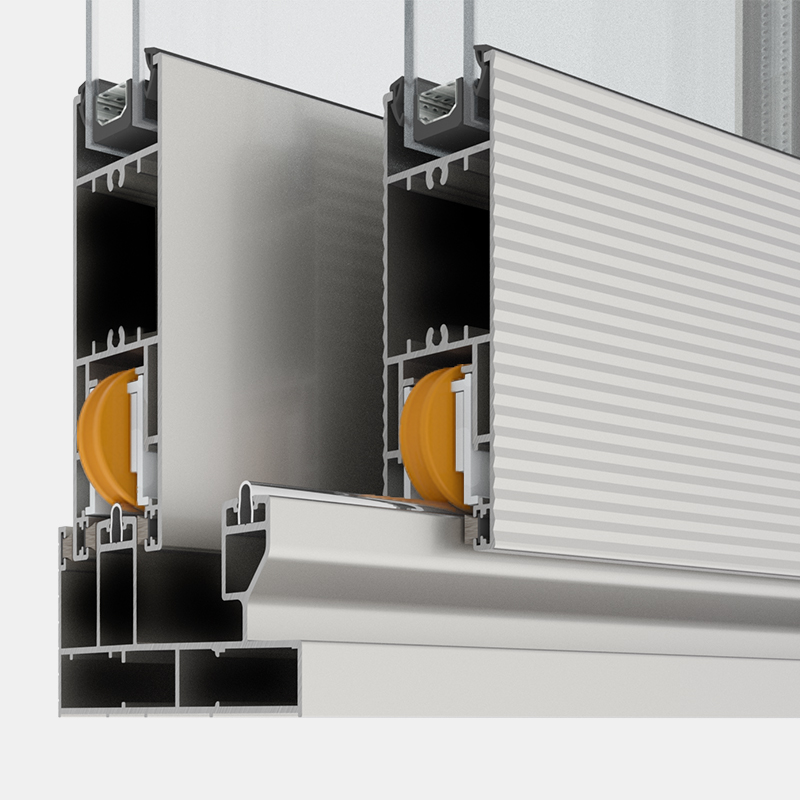

High-Durability Bearing System
High-performance bearings support smooth movement and long-lasting operating comfort, even with heavy sashes.
Special Fly Screen Design
A dedicated fly screen solution integrated with the frame enhances indoor comfort while preserving the clean appearance.

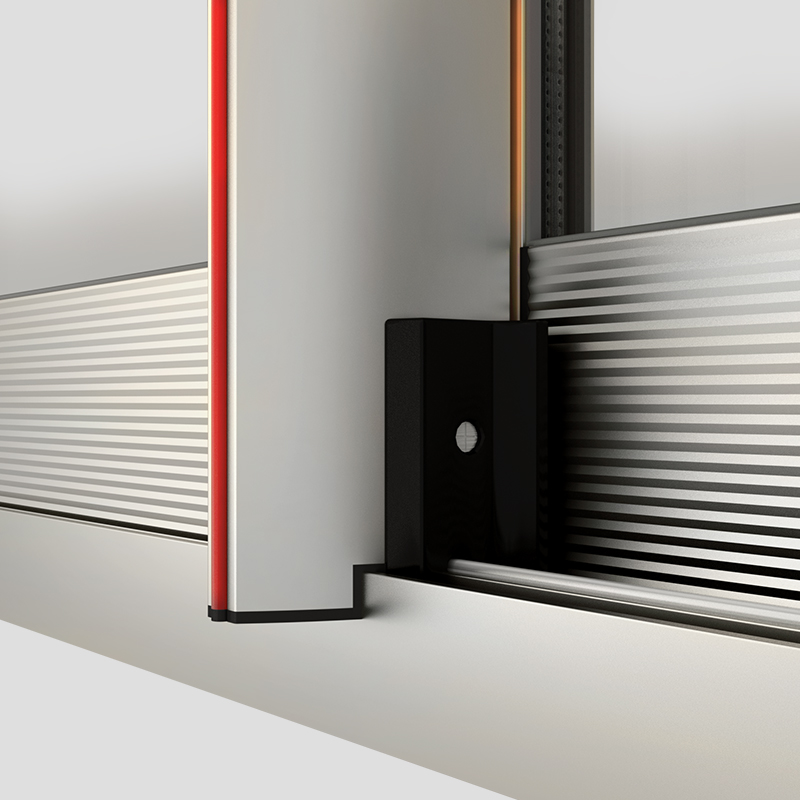

Multi-Point Locking
Single or multi-point locking options integrated into the sliding sash strengthen security to suit project requirements.

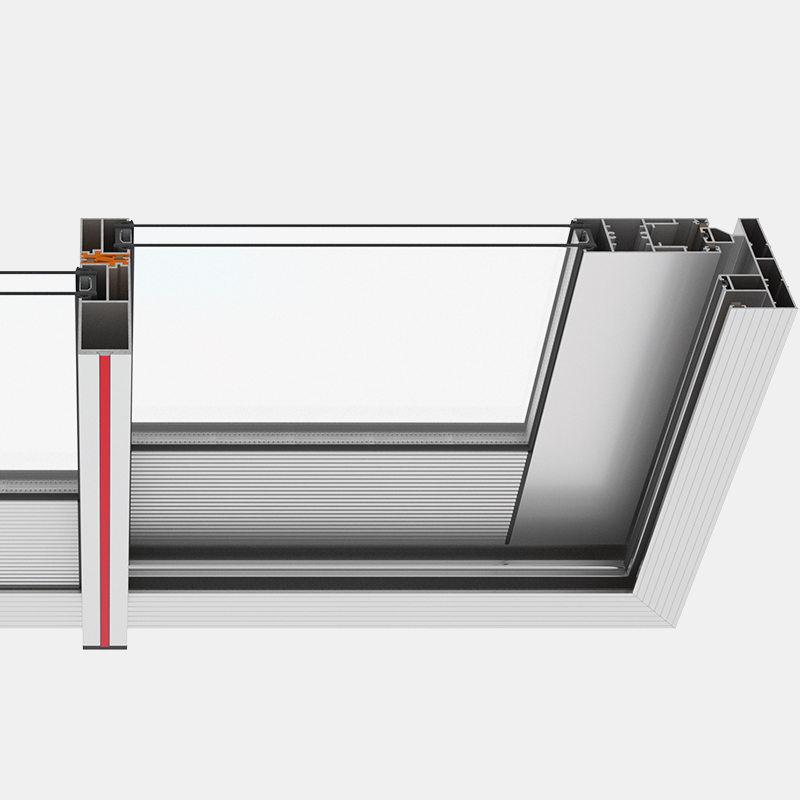

Flexible Frame Options
Monorail and 3-track frame alternatives with 45° and 90° sash joints adapt to different architectural openings.
Technical Details
Sliding Types
Technical Specifications
- Sash Width38 mm
- Sash Height92.5 mm
- Profile Wall Thickness1.3–1.8 mm
- Glass Thickness20–26 mm
- Maximum Sash Carrying Capacity120 kg
The durable profile structure and high-performance bearings provide smooth, stable and reliable sliding in modern interiors.
The system adapts to different project requirements with monorail and 3-track frames, 45° and 90° sash joints, multi-point locking and integrated fly screen options.
Let’s determine the right uninsulated sliding solution for your project.
Get support from our expert team on sash dimensions, glazing, bearing systems, frame types, locking and fly screen options.
Technical Documentation Portal
Access system CAD files, detailed technical documents and technical PDFs in one place through your approved account.
Portal access becomes available after your membership request is approved by Linea Rossa.
